Pilotpack 5020

Description

PILOTPACK 5020 Packing is manufactured from high strength, high modulus meta-aramid yarn. The yarn is produced by a special process that ensures that every single filament is covered by PTFE and a special lubricant. PILOTPACK 5020 gives excellent operating life over a wide range of applications, especially in abrasive media giving long life on rotating equipment and valves operating on slurries and abrasive media, typically in paper and pulp, sewage, cement, power generation industries as well the food and drink industry.

Applications

  • Designed to operate on high-speed rotary applications, high-pressure valve and static applications.
  • Superb wear resistance even in arduous and abrasive media.
  • Excellent extrusion resistance even at high speeds and pressures.
  • Minimal shaft wear due to polishing effect.
  • High-temperature resistance combined with good dimensional stability.

Water Regulations Approval Scheme

The material included in our packing is suitable for contact with wholesome water for domestic purposes having met the requirements of BS6920-1:2000 and/or 2014.

Chemical Compatibilities

For the pH range 2-13, the packing is chemically inert and non-toxic.

Sizes Available

All square sections are available from 3mm (1/8”) to 25mm (1”) are generally available from stock in differing lengths depending on the cross-section. Larger and rectangular sections can also be manufactured to order. PILOTPACK 5020 packings can also be supplied in preformed or die formed rings.

Rotating applications

Speed: 25 m/s
Temperature range: -100 to 300˚C
Maximum pressure: 25 bar

Valve applications

Speed: 2 m/s
Temperature range: -100 to 300˚C
Maximum pressure: 300 bar

Reciprocating applications

Speed: 2 m/s
Temperature range: -100 to 300˚C
Maximum pressure: 200 bar

PTFE Design

Beldam Crossley can create PTFE products to your specification, creating a product with the correct PTFE grade material that works best for your application.

Contact our team of design engineers with your requirements and see how we can help you.

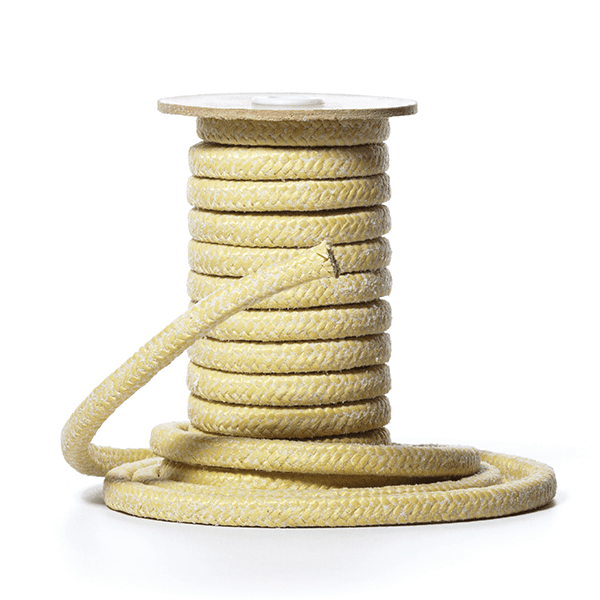

Pilotpack 5020. Aramid packing with lubricant for use with abrasive media.
