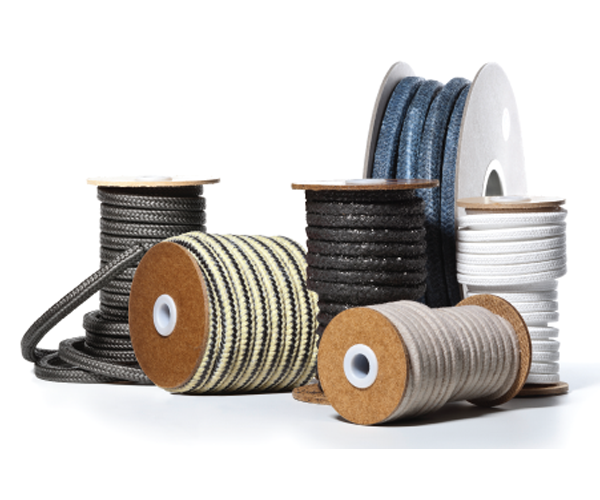

Pilotpack® compression packings provide gland sealing for pumps, valves and other rotary or reciprocating equipment. Beldam Crossley manufactures packing in the UK and helps engineers select a grade for the operating media, temperature, pressure and shaft duty.
Beldam Crossley utilises the latest production techniques and leading materials to ensure a high integrity seal is achieved in even the most arduous applications.
They are typically used on valves, pumps and other rotary and reciprocating equipment.
We have one of the most extensive range of sizes available today, supplied typically in a square section ranging from 3mm to 25mm as a standard profile, with larger sizes and bespoke products available upon request.
The Pilotpack 3480, 3411, 5035, 3435, 4040 & 7099 range of gland packings is suitable for contact with wholesome water for domestic purposes having met the requirements of BS6920-1:2000 and/or 2014 at temperatures up to 85°C.
Pilot® compression packings are also suitable for use in static sealing applications such as manway and boiler door joints.
Share the fluid or gas, operating temperature and pressure, shaft speed, packing cross-section and any required approvals. Our team can review the duty against current grade-specific technical data and recommend a suitable packing.
All our manufacturing is based in the UK and operates to internationally accepted standards – including AS9100:2018 Rev D and ISO14001:2015.
C standards for design and manufacture of products for aerospace, and environmental management system standards to BS EN ISO 14001:2004.
| Packing Style | Product Description | Pumps | Valves | Max Rotary Speed m/s | Max Linear Speed m/s | Max Rotary Pressure BAR | Max Valve Pressure BAR | Max Temp °C | PH Range |
|---|---|---|---|---|---|---|---|---|---|

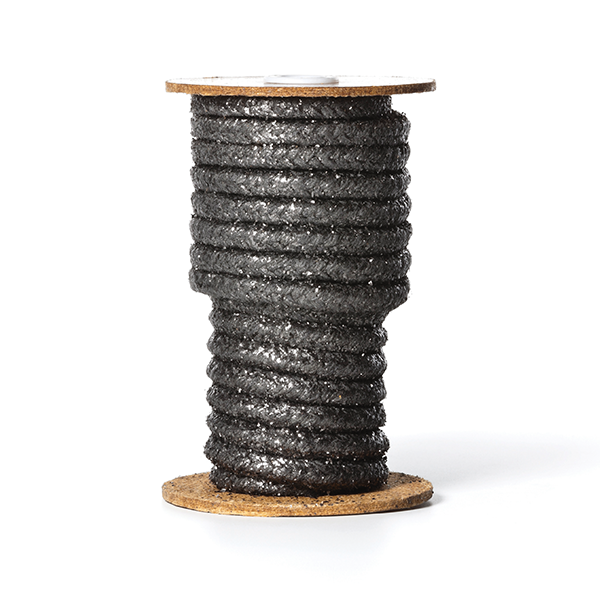

| Pilotpack 116 | Graphited traditional marine packing | Yes | Yes | 10 | 2 | 25 | 100 | 120 | 5-9 |

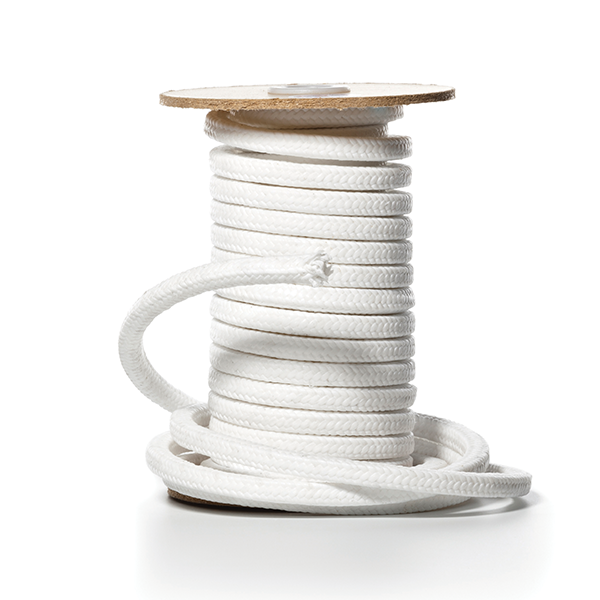

| Pilotpack 3400 | High-performance ePTFE packing for food, pharmaceutical and fine chemicals | Yes | Yes | 20 | 2 | 20 | 100 | 280 | 0-14 |
| Pilotpack 3408 | 100% PTFE oil-free packing | Yes | Yes | 10 | 2 | 20 | 350 | 280 | 0-14 |
| Pilotpack 3410 | Lubricated PTFE packing for general industrial use | Yes | Yes | 15 | 2 | 20 | 200 | 280 | 0-14 |
| Pilotpack 3435 | High-performance industrial packing manufactured from ePTFE with graphite | Yes | Yes | 25 | 2 | 25 | 350 | 290 | 0-14 |
| Pilotpack 3480 | High-performance universal packing manufactured from ePTFE with graphite | Yes | Yes | – | – | – | 200 | 280 | 1-14 |
| Pilotpack 4000 | High purity graphite packing with Inconel for high-temperature valves and pumps | – | Yes | – | 2 | – | 500 | 500 | 0-14 |

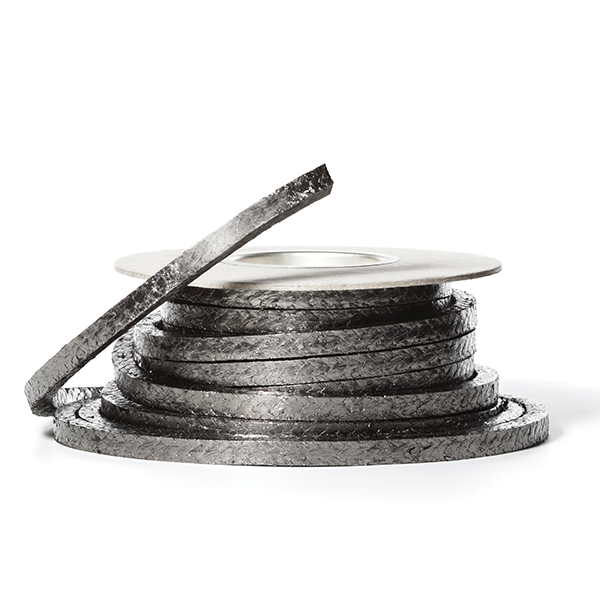

| Pilotpack 4001 | High purity graphite packing for high-temperature valves and pumps | Yes | Yes | 25 | 2 | 25 | 300 | 500 | 0-14 |
| Pilotpack 4009 | High purity graphite packing with Inconel for high-temperature valves and pumps | – | Yes | – | 2 | – | 350 | 650 | 1-14 |
| Pilotpack 4010 | Flexible filament graphite packing for high pressure and high-temperature valves and pumps | Yes | Yes | 25 | 2 | 8 | 200 | 500 | 3-13 |

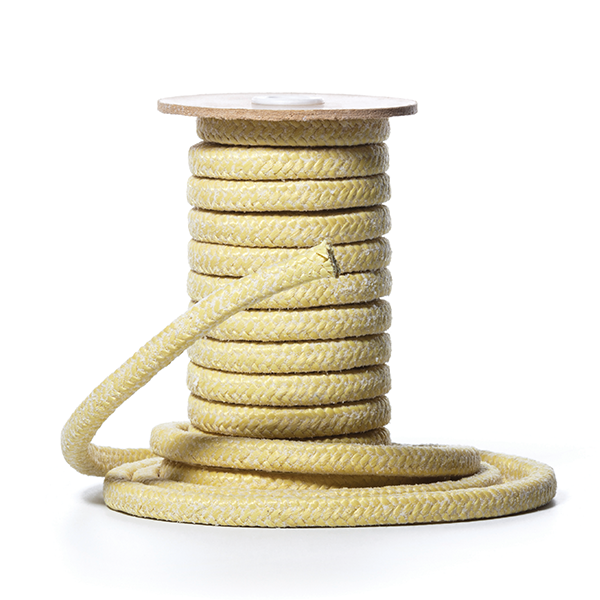

| Pilotpack 5020 | Aramid packing with lubricant for use with abrasive media | Yes | Yes | 20 | 2 | 25 | 300 | 300 | 2-13 |

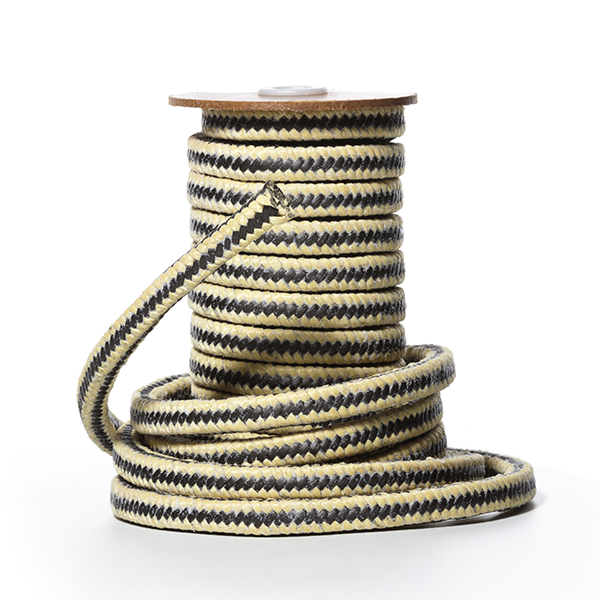

| Pilotpack 5035 | Aramid packing with graphited ePTFE for use with abrasive media | Yes | Yes | 25 | 2 | 20 | 350 | 290 | 1-14 |

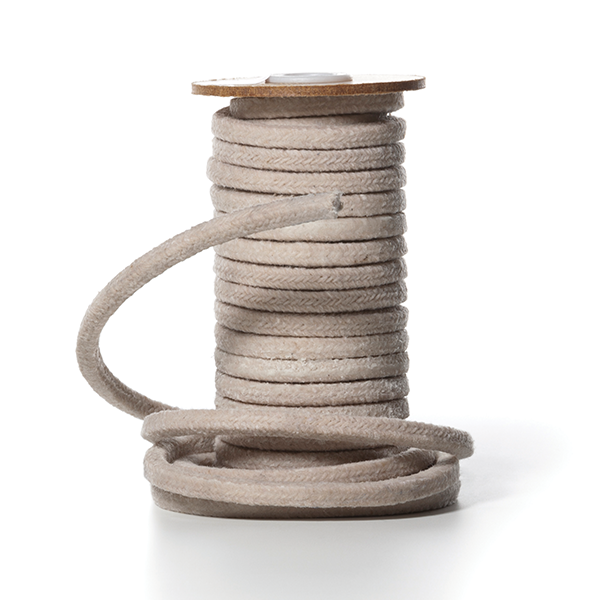

| Pilotpack 76 | Lubricated traditional marine packing | Yes | Yes | 10 | 2 | 25 | 100 | 120 | 5-9 |

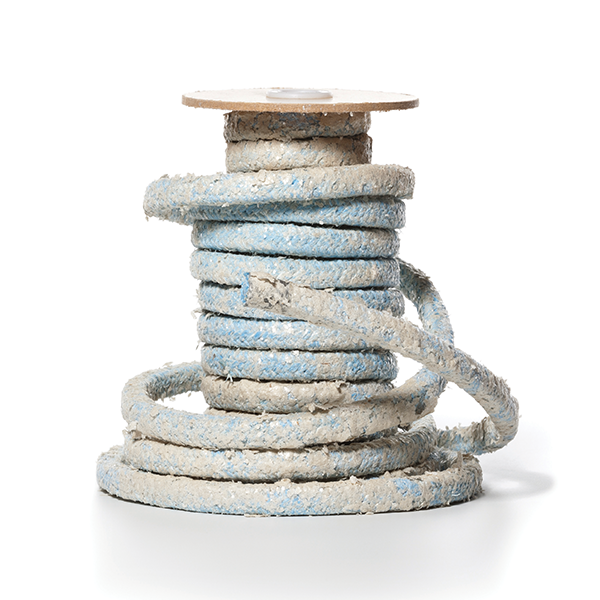

| Pilotpack 8500 | Refined silica packing with special reinforced and lubricant for high-temperature valves | – | Yes | – | 1 | – | 150 | 700 | 3-14 |
