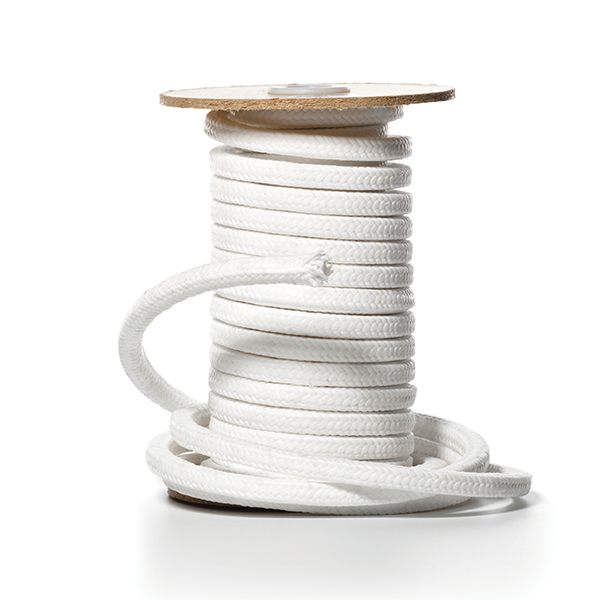

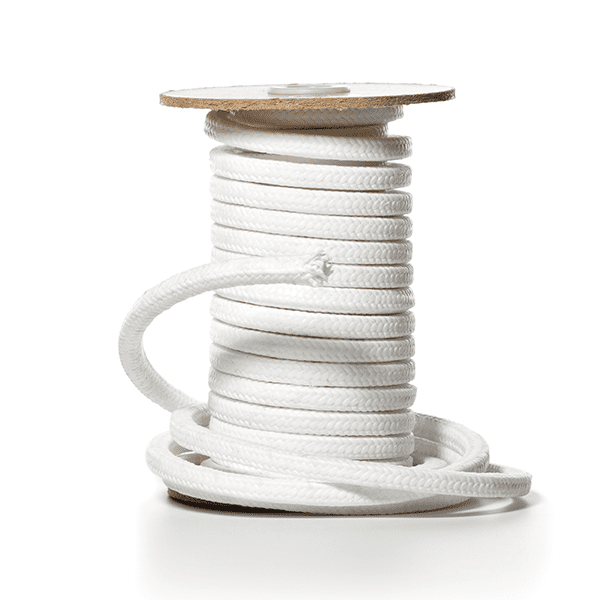

Pilotpack 3400

Description

Specially developed high-performance packing manufactured from an expanded PTFE yarn (ePTFE) consisting of pure PTFE containing highly refined lubricant & filler both of which are encapsulated in the ePTFE. This gives a yarn that has superior heat transfer properties and ensures the heat generated is rapidly removed. When this yarn is braided using the ‘Crossplait’ technique of manufacture, this gives superior packing that increases service life. PILOTPACK 3400 packing has been specially developed for use in pharmaceutical and food & beverage industries but also in fine chemicals & fine paper applications, or any application where any contamination cannot be tolerated.

Applications for Pilotpack 3400

  • Manufactured from FDA-compliant materials
  • Especially suitable for use in applications where a non-contaminating packing is required
  • Excellent heat transfer & heat dissipation properties ensure a cool running packing giving a longer seal life
  • Suitable for pump, valve, reciprocating and static applications especially in pharmaceutical, food/beverage industries but also in fine chemicals & fine paper applications
  • Manufactured from a superior pure ePTFE yarn that gives increased life over other PTFE yarns

Chemical Compatibilities

For the pH range 0-14, the packing is chemically inert. Suitable for all chemicals except for fluorine and molten alkali metals.

Sizes Available

All square sections from 3mm (1/8”) to 25mm (1”) are generally available from stock and supplied in differing lengths depending on the cross-section. Larger and rectangular sections can be manufactured to order. Packing can also be supplied in preformed or die-formed rings.

Pilotpack 3400 Rotating applications

Speed: 20 m/s
Temperature range: -100 to 280˚C
Maximum pressure: 20 bar

Valve applications

Temperature range: -100 to 120˚C
Maximum pressure: 100 bar

Reciprocating applications

Speed: 2 m/s
Temperature range: -100 to 120˚C
Maximum pressure: 100 bar

PTFE Design

Beldam Crossley can create PTFE products to your specification, creating a product with the correct PTFE grade material that works best for your application.

Contact our team of design engineers with your requirements and see how we can help you.

Crossflon®

Beldam Crossley has been moulding PTFE for over half a century. We have since developed a wide range of High Performance Crossflon® materials, each suited to a specific application.

Pilotpack 3400. High performance ePTFE packing for food, pharmaceutical and fine chemicals.
