LIDPACK® 3801L



LIDPACK® 3801L — For Hydrocarbons & Chemicals

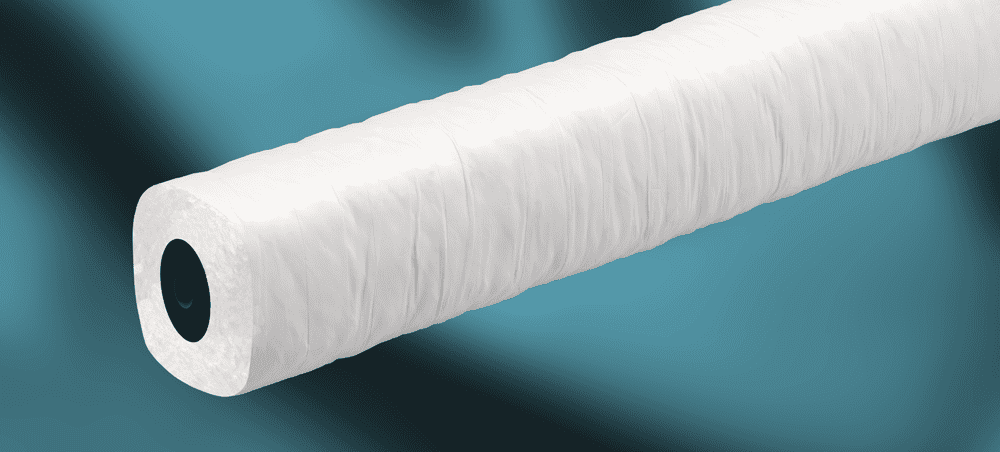

PILOT LIDPACK® 3801L consists of a elastomeric core, surrounded by a cushion of Polypropylene, which has been spirally wrapped, with layers of PTFE tape to give maximum chemical resistance.

A second layer of braided of PTFE yarn gives the finished packing strength and resists abrasion. The final outer layers of unsintered PTFE tape gives complete impermeability to liquids and chemicals.

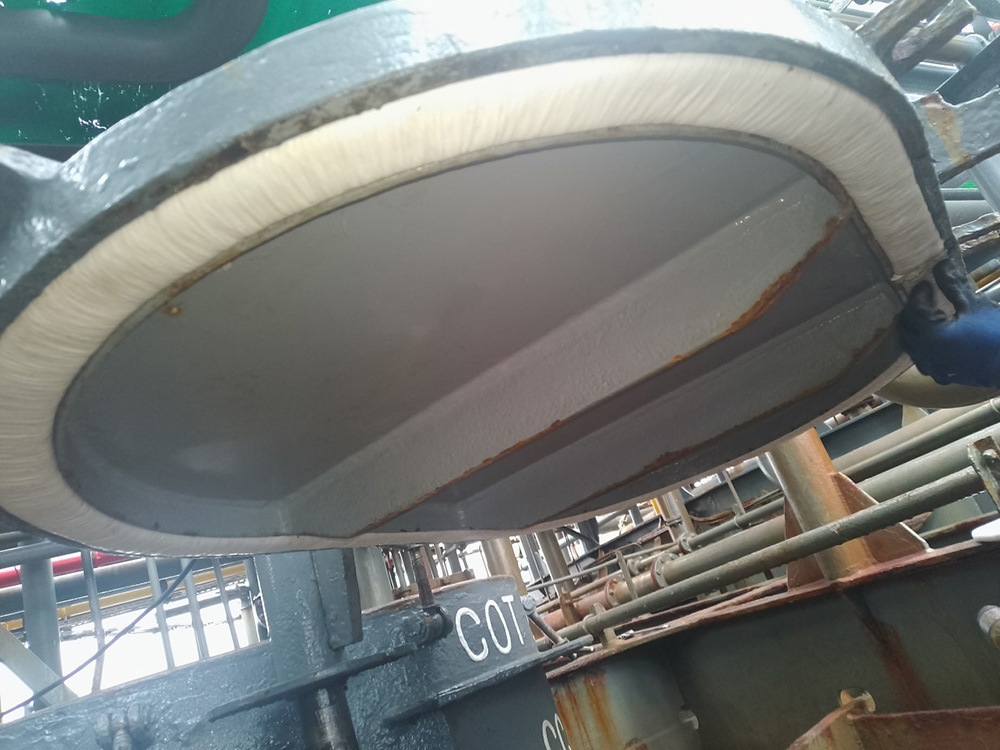

The construction ensures excellent recovery after compression from continual opening\closing of the tank lid.

Construction

  • EPDM elastomeric core with polypropylene cushion
  • Spirally wrapped PTFE tape
  • Braided PTFE yarn
  • Outer unsintered PTFE layers

Key Features

  • Exceptional durability and abrasion resistance
  • Superior recovery after repeated compression (ideal for frequently used tank lids)
  • Maximum Temperature: 100°C
  • Maximum Pressure: 0.7 bar (static)

Applications

  • Perfect for oils
  • Hydrocarbon fuels
  • Acids and alkalis
  • Naphtha
  • Powdered chemicals

Available As

  • Square/rectangular sections in continuous coils
  • Cut lengths
  • Custom-made rings

How Supplied

  • Available in square or rectangular sections, which can be supplied in continuous coils, cut lengths or customised ready made rings to individual specifications.

Application Instruction

All Beldam Crossley products are manufactured to an incredibly high standard. To do this, we manufacture from two locations based in the northern part of the UK. We operate to international global standards including BS EN ISO 9001 and BS EN ISO AS 9100.

We work within industries where quality is paramount, and we take this responsibility very seriously. Many of the products we provide are used to protect lives – failure is not an option.
